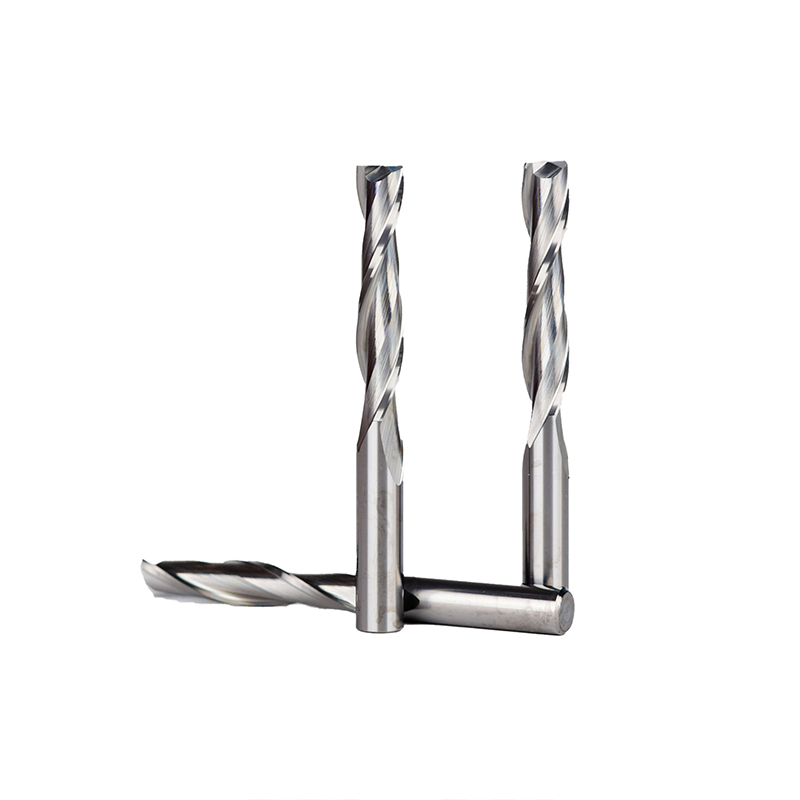

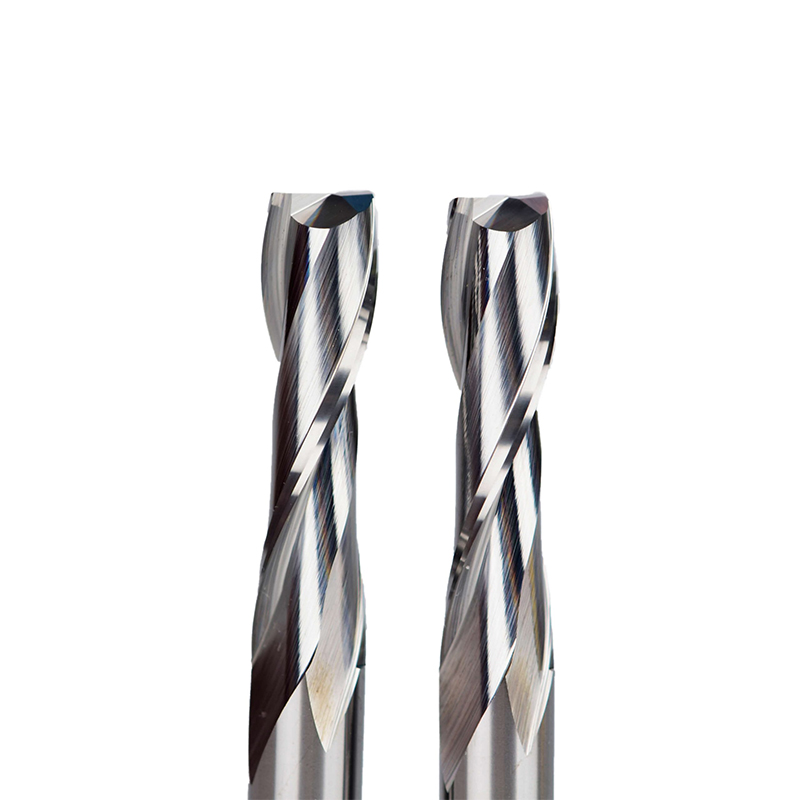

Two Flute Spiral Router Bit 1011

Two Flute Spiral Router Bit

Code:1011

Material: Carbide

Coating: No Coating

Shank diameter: 1-10 mm

Overall length: 38-110mm

Flutes:2

End type: Center cutting

Main features

*Designed to significantly increase performance in highly balanced machining centers capable of elevated RPM and feed rates

*H6 shank tolerance for high precision tool holders

*Excellent performance in high efficiency milling

*High accuracy, not easy to wear, good sharp.

*Large discharge chute, fast processing speed, without sticking.

Application

Suitable for MDF, Plywood, Multilayer PCB and other wood processing

Woodworking CNC processing machine often use CNC Router Bits,Products to cut plywood, such as CNC compression spiral router bits, TCT straight router bits, CNC Router Bits,Products, straight carbide tipped router bits, spiral router bits and so on. These router bits play a very important role in furniture making, crafts, decoration, etc. Different types wood router bits have different use.

Product Tables

NO Order NO Size SHK CED   CEL OVL
1 10110104 1*4 3.175 1 4 38
2 10111506 1.5*6 3.175 1.5 6 38
3 10111508 1.5*8 3.175 1.5 8 38
4 10111512 1.5*12 3.175 1.5 12 38
5 10110208 2*8 3.175 2 8 38
6 10110212 2*12 3.175 2 12 38
7 10110215 2*17 3.175 2 17 38
8 10110222 2*22 3.175 2 22 45
9 10112512 2.5*12 3.175 2.5 12 38
10 10112517 2.5*17 3.175 2.5 17 38
11 10112522 2.5*22 3.175 2.5 22 45
12 10113112 3.175*12 3.175 3.175 12 38
13 10113115 3.175*15 3.175 3.175 15 38
14 10113117 3.175*17 3.175 3.175 17 38
15 10113122 3.175*22 3.175 3.175 22 45
16 10113125 3.175*25 3.175 3.175 25 50
17 10113128 3.175*28 3.175 3.175 28 50
18 10113132 3.175*32 3.175 3.175 32 55
19 10113142 3.175*42 3.175 3.175 42 65
20 10113152 3.175*52 3.175 3.175 52 75
21 10110412 4*12 4 4 12 40
22 10110415 4*15 4 4 15 40
23 10110417 4*17 4 4 17 45
24 10110422 4*22 4 4 22 45
25 10110425 4*25 4 4 25 50
26 10110428 4*28 4 4 28 55
27 10110432 4*32 4 4 32 60
28 10110442 4*42 4 4 42 70
29 10110452 4*52 4 4 52 80
30 10110517 5*17 5 5 17 45
31 10110522 5*22 5 5 22 50
32 10110525 5*25 5 5 25 50
33 10110528 5*28 5 5 28 55
34 10110532 5*32 5 5 32 60
35 10110617 6*17 6 6 17 45
36 10110622 6*22 6 6 22 50
37 10110625 6*25 6 6 25 50
38 10110628 6*28 6 6 28 60
39 10110632 6*32 6 6 32 60
40 10110642 6*42 6 6 42 70
41 10110652 6*52 6 6 52 80
42 10110662 6*62 6 6 62 100
43 10110825 8*25 8 8 25 60
44 10110832 8*32 8 8 32 60
45 10110842 8*42 8 8 42 80
46 10110852 8*52 8 8 52 90
47 10111032 10*32 10 10 32 70
48 10111042 10*42 10 10 42 80
49 10111052 10*52 10 10 52 100
50 10111062 10*62 10 10 62 110
51 10111230 12*32 12 12 32 70
52 10111242 12*42 12 12 42 80
53 10111250 12*52 12 12 52 100
54 10111262 12*62 12 12 62 110
55 10111280 12*80 12 12 80 120
56 10111274 12.7*42 12.7 12.7 42 90
57 10111275 12.7*52 12.7 12.7 52 100
58 10111276 12.7*62 12.7 12.7 62 110
59 10111278 12.7*80 12.7 12.7 80 120
60 10111442 14*42 14 14 42 90
61 10111452 14*52 14 14 52 100
62 10111642 16*42 16 16 42 90
63 10111652 16*52 16 16 52 100
64 10111662 16*62 16 16 62 110
65 10111672 16*72 16 16 72 120
66 10111852 18*52 18 18 52 100
67 10111872 18*72 18 18 72 120
68 10112052 20*52 20 20 52 100
69 10112062 20*62 20 20 62 110
70 10112072 20*72 20 20 72 120

PDF Files

WEIX Tool’s  Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.

Click to download our catalog

Speed And Feeds

Speed And Feeds

Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.

Contact Us: info@weixtool.com

Click there to download files

If you want to know more about CNC Router Bits,Products for plywood cutting, welcome to contact us. Our Premium CNC Router Parts & Tools Store. Contact us Today: info@weixtool.com – CNC Parts and Woodworking Tools for sale team strives to offer quality
Carbide End Mill, CNC router bits, woodworking tools, cnc parts, cnc tools, woodturning tools, tool holders, tool clips, diamond bits,Products and customer solutions. We are at your service.
