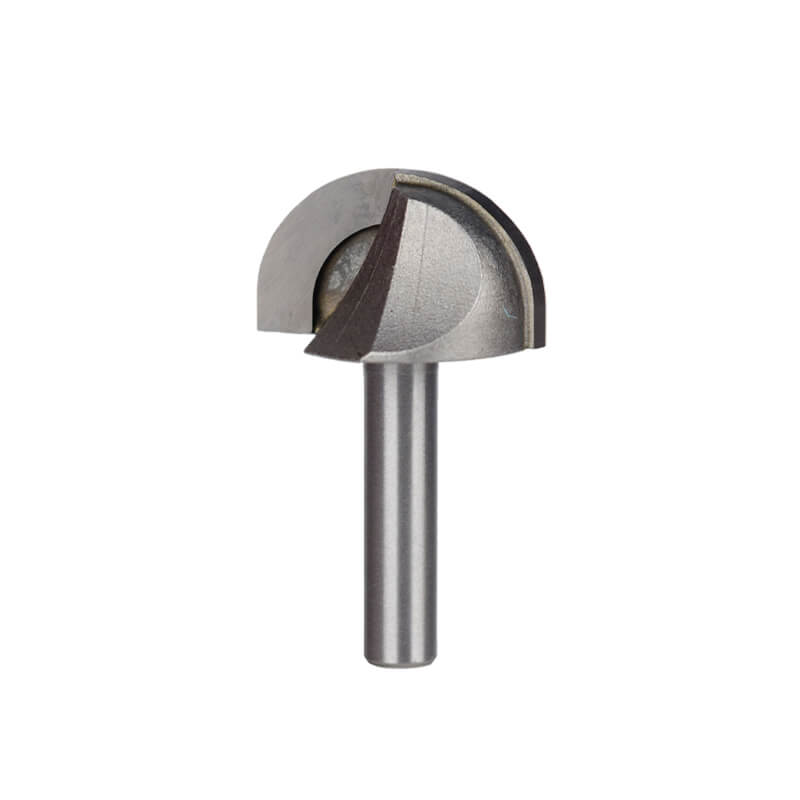

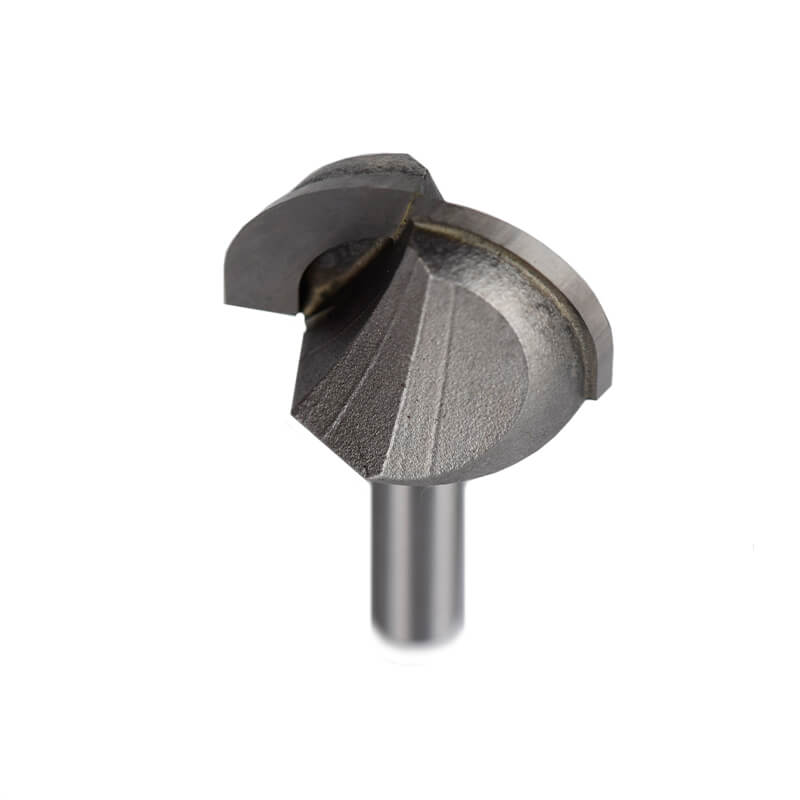

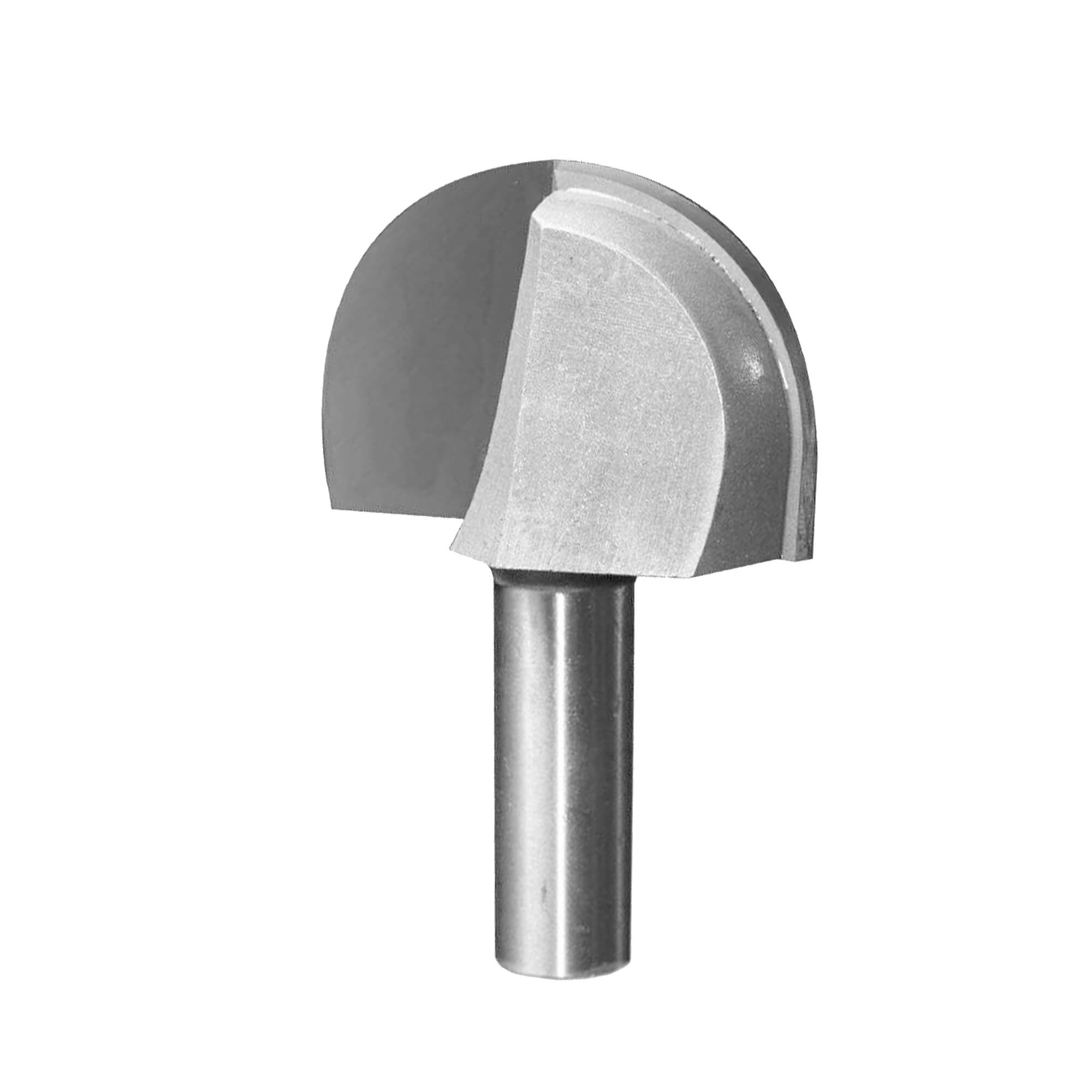

Round bottom router bit
Code:1027
Material:Tungsten steel+45#steel
Coating: No Coating
Shank diameter:6 8 12.7mm
Blade diameter:12 16 22 25 32mm
Type: Woodworking Knife
Main features
*For grooving cleaning
*Spiral design, good chip removal effect, sharp and continuous knife
Application
*Suitable for processing materialsApply to
Organic board MDF solid wood pvc
*Adaptation Machine Capable of
Trimming Machine Router Router Bakelite Milling Machine
| SIZE | SHK | CED | Order No. |
|---|---|---|---|
| 6*12 | 6 | 12 | 10270612 |
| 6*16 | 6 | 16 | 10270616 |
| 6*22 | 6 | 22 | 10270622 |
| 6*25 | 6 | 25 | 10270625 |
| 6*32 | 6 | 32 | 10270632 |
| 8*12 | 8 | 12 | 10270812 |
| 8*16 | 8 | 16 | 10270816 |
| 8*22 | 8 | 22 | 10270822 |
| 8*25 | 8 | 25 | 10270825 |
| 8*32 | 8 | 32 | 10270832 |
| 12.7*12 | 12.7 | 12 | 10271212 |
| 12.7*16 | 12.7 | 16 | 10271216 |
| 12.7*22 | 12.7 | 22 | 10271222 |
| 12.7*25 | 12.7 | 25 | 10271225 |
| 12.7*32 | 12.7 | 32 | 10271232 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
