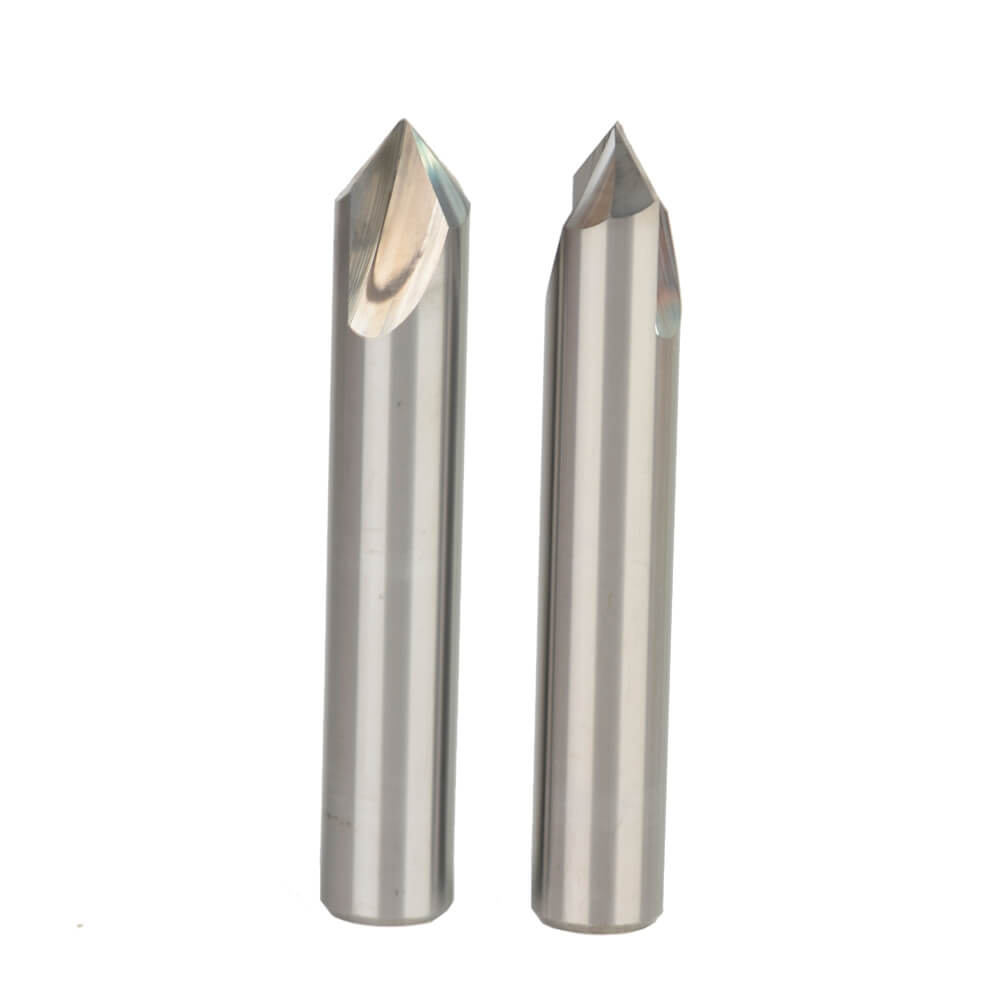

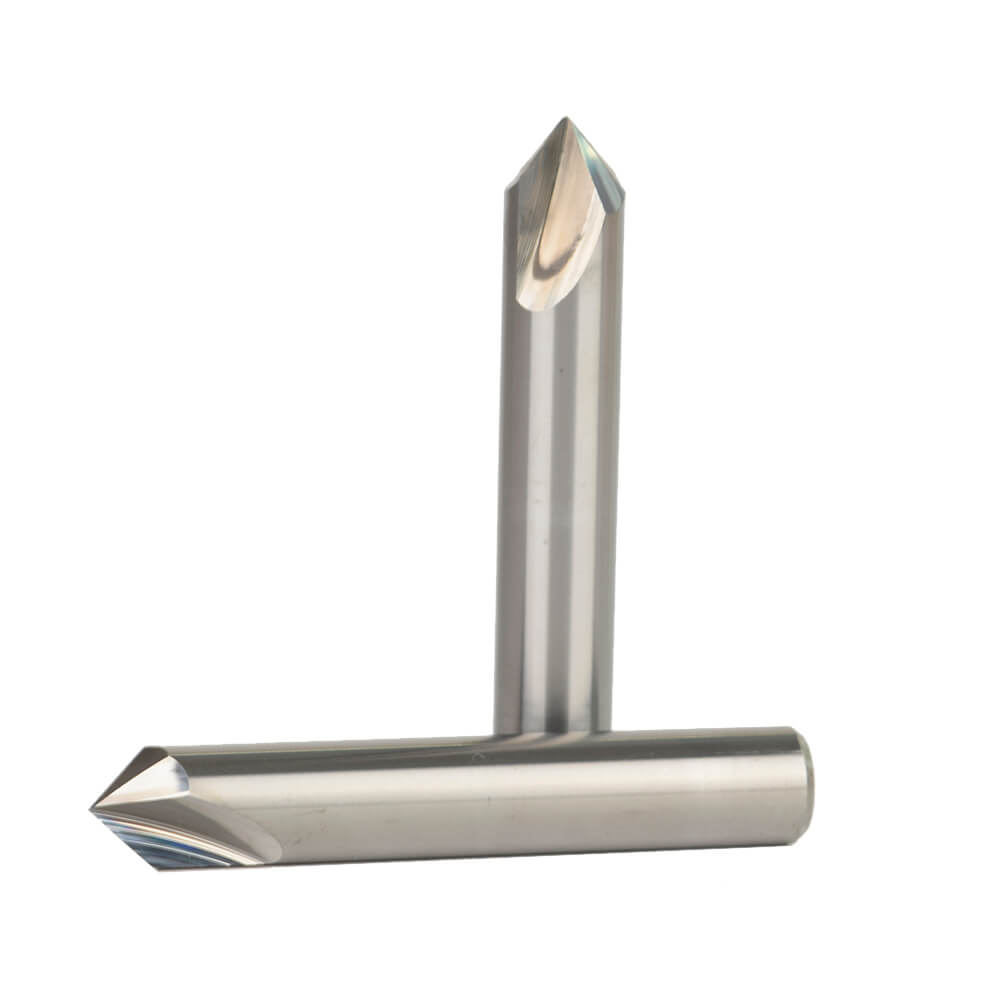

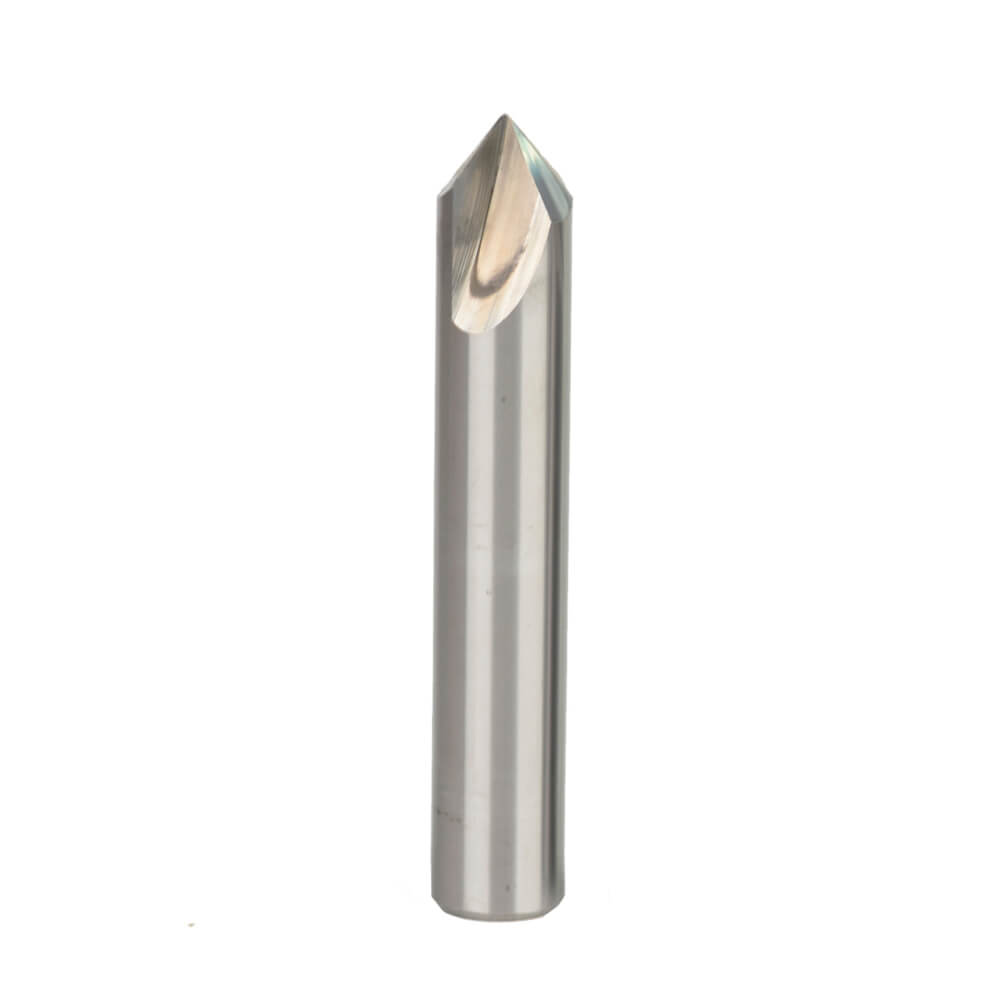

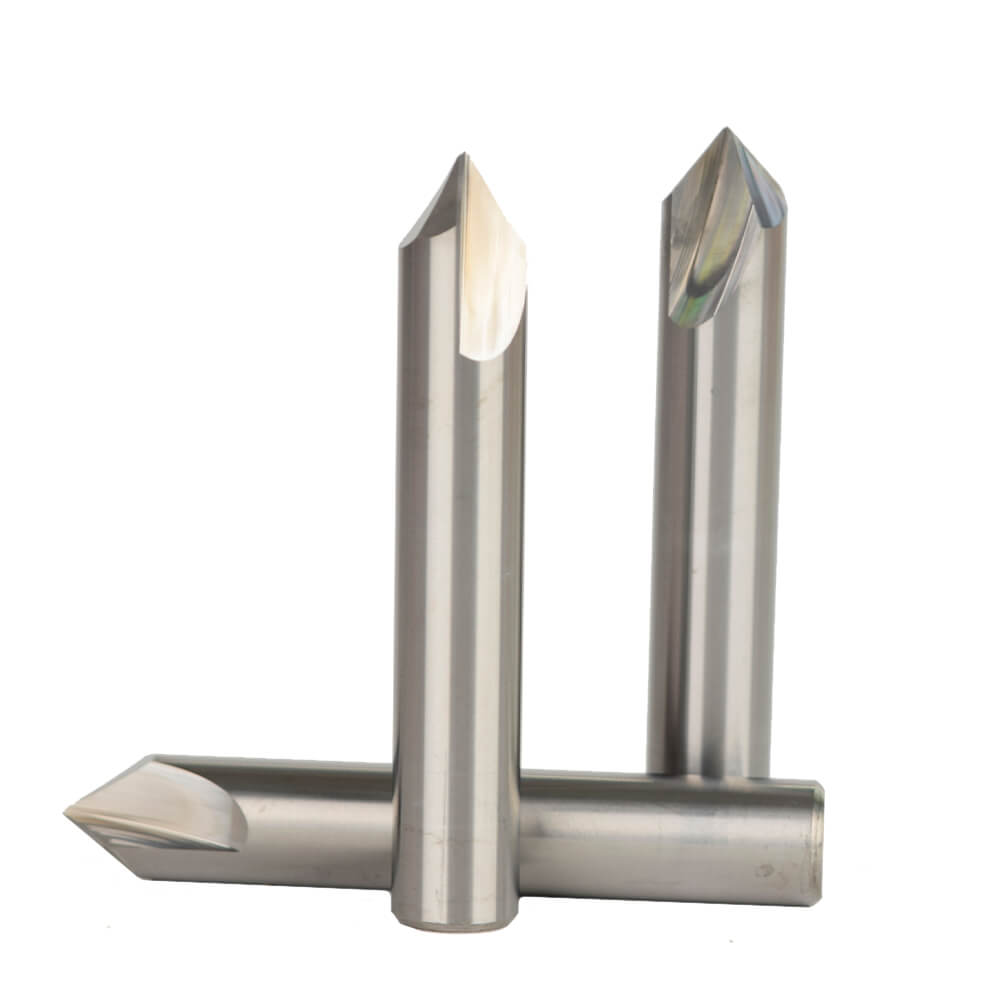

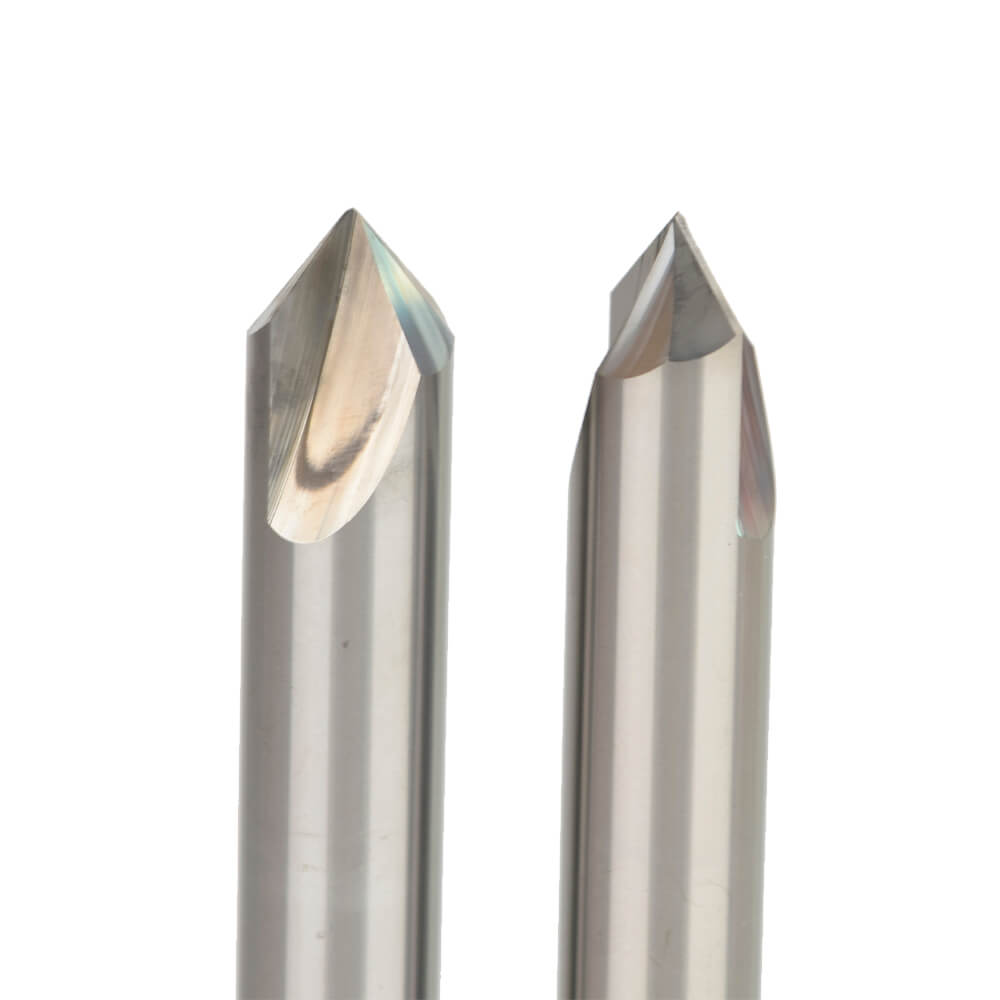

Three Flutes Tungsten straight chamfer
Code:1554
Material:Tungsten steel
Coating: No Coating
Blade diameter: 1-12mm
Shank diameter: 4-12
End type: Metal cutter
Main features
* Precise chamfering, bright blade, smooth cutting without burr, passivation treatment, reduce wear during processing and use, product wear resistance
* Super large straight groove design, super large straight groove chip removal design, large chip space, good chip removal performance and fast speed
* Sharp edge, strong and shock-resistant, high-pitched wear-resistant, stable cutting
* Three-edged chamfering knife, strong stability, the knife edge is not easy to jump
* Universal smooth chamfered round shank, easy to use, strong compatibility, stable clamping, and enhanced vibration resistance of the tool
Application
*Suitable for processing materialsApply to
Stainless steel, alloy steel, tool steel, quenched and tempered steel, carbon steel, cast iron and other steel chamfering operations
*Adaptation Machine Capable of
CNC machining center, CNC lathe
| CED | SHK | ANGLE | OVL | Order No. |
|---|---|---|---|---|
| 1 | 4 | 90° | 50 | 155410490 |
| 1.2 | 4 | 90° | 50 | 155412490 |
| 1.5 | 4 | 90° | 50 | 155415490 |
| 2 | 4 | 90° | 50 | 155420490 |
| 2.5 | 4 | 90° | 50 | 155425490 |
| 3 | 3 | 90° | 50 | 155430390 |
| 4 | 4 | 90° | 50 | 155440490 |
| 5 | 5 | 90° | 50 | 155450590 |
| 6 | 6 | 90° | 50 | 155460690 |
| 8 | 8 | 90° | 60 | 155480890 |
| 10 | 10 | 90° | 75 | 1554101090 |
| 12 | 12 | 90° | 75 | 1554121290 |
| 3 | 3 | 60° | 50 | 155430360 |
| 4 | 4 | 60° | 50 | 155440460 |
| 6 | 6 | 60° | 50 | 155460660 |
| 8 | 8 | 60° | 60 | 155480860 |
| 10 | 10 | 60° | 75 | 1554101060 |
| 12 | 12 | 60° | 75 | 1554121260 |
| 3 | 3 | 120° | 50 | 1554303120 |
| 4 | 4 | 120° | 50 | 1554404120 |
| 6 | 6 | 120° | 50 | 1554606120 |
| 8 | 8 | 120° | 60 | 1554808120 |
| 10 | 10 | 120° | 75 | 155410120 |
| 12 | 12 | 120° | 75 | 155412120 |
WEIX Tool’s Spring 2019 Catalog introduces more than 100 tools, each in stock and ready to ship within 2 days.
Speed And Feeds
Below you will find downloadable and printer-friendly Speeds & Feeds for this product line. All posted Speed & Feed parameters are suggested starting values that may be increased given optimal setup conditions. If you can’t find the information you’re looking for, Weix Tool has a team of technical experts available to assist you.
